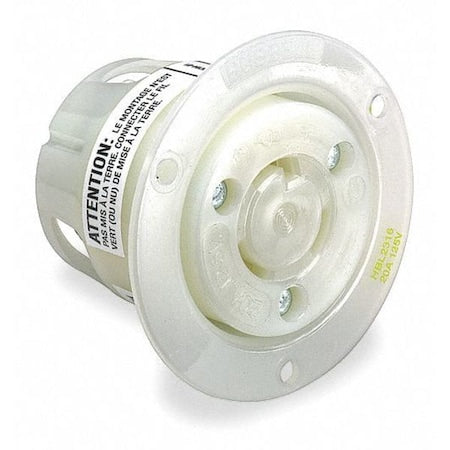

HUBBELL WIRING DEVICE-KELLEMS Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, White

The HUBBELL 15A Flanged Twist-Lock Receptacle is a flanged locking receptacle intended for use in industrial settings requiring locking electrical connections. This device features a twist-lock mechanism, rated for 15 amps and 125V AC, with a NEMA L5-15R configuration. Constructed from impact-resistant thermoplastic and nylon materials, it is suitable for indoor dry locations where reliable power connectivity is required.

Key Features of the HUBBELL 15A Flanged Twist-Lock Receptacle:

• Amperage/Voltage: Rated for 15 A at 125V AC single phase


• NEMA Configuration: L5-15R (2-pole, 3-wire)


• Material Construction: Thermoplastic housing with nylon flange (impact resistance per manufacturer specifications)


• Mounting Type: Flush mount design; includes mounting screws and hardware


• Wire Termination: Backwired screw terminals accept #18 to #10 AWG copper wire; accepts slotted, Phillips, and Robertson drivers


• Operating Temperature Range: -40°C to +75°C (without impact)


• Dielectric Strength & Performance: Rated dielectric strength: minimum 2,000V; listed as current interrupting at full rated current per certification standards


• Flammability Rating: HB or better per UL94/CSA standards


• Covers & Protection: Includes cover; IP20 rating for indoor use only


• Certifications & Standards: CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed

• Brand: HUBBELL WIRING DEVICE-KELLEMS
• Mfr. Part #: HBL4715C
• Sold as: EA
